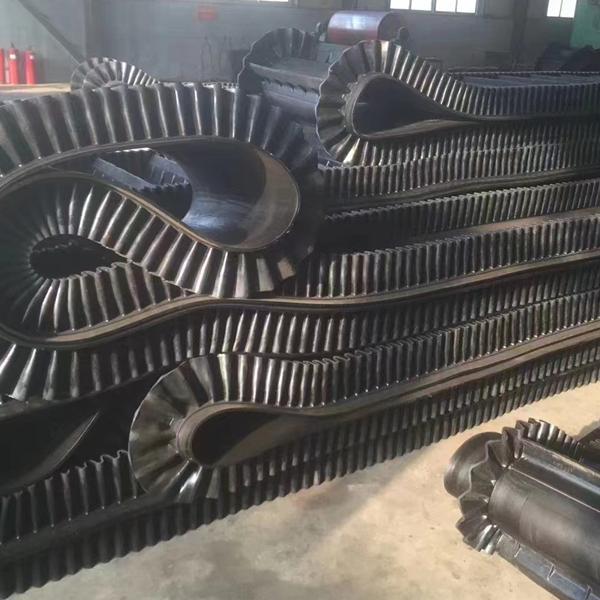

Steep Angle Conveyor Belts
1. The maximum conveying angle of the high angle sidewall conveyor belt can be close to 90°, breaking through the angle limitation of traditional conveyor belts.
2. The combination of high angle sidewall conveyor belt corrugated sidewall and transverse partition can effectively increase the conveying capacity and reduce the leakage during transportation.
3. The materials used in the manufacturing process of high angle sidewall conveyor belt comply with the environmental management system and do not pollute the environment.
- Hengyi
- Shenyang, Liaoning
- Depends on the actual situation
- 12 million ㎡ /year
- Information
Introduction of high angle cleated conveyor belt：
High angle cleated conveyor belt is a conveying equipment designed for conveying materials on steep slopes or even in vertical directions. It is suitable for a variety of material types, such as powder, granular, block and mixed materials. The design of high angle cleated conveyor belt combines corrugated sidewalls and diaphragm structures, which can ensure stable transportation and efficient transportation of materials in complex environments. It is widely used in mining, metallurgy, chemical industry, electric power, building materials and other fields.
Features of partition conveyor belt：
The partition conveyor belt has a compact structure and occupies a small area, which can facilitate customers to allocate space resources more reasonably. Partition conveyor belt has partitions placed inside, which together with the side walls form the three-dimensional structure of the conveyor belt, which enhances the stability and carrying capacity of the conveyor belt to a certain extent. In terms of design, the high angle sidewall conveyor belt adopts a modular design, which is convenient for quick installation, replacement and maintenance. It can greatly reduce the downtime caused by maintenance and reduce the operating costs to a certain extent.
Composition of partition conveyor belt：
1. Base belt, as the main part of partition conveyor belt, carries materials for transportation.
2. Side walls, located on both sides of the base belt, are used to prevent the material from slipping during transportation.
3. Partition plate (cross partition), located inside the conveyor belt, together with the side wall, constitutes the three-dimensional structure of the conveyor belt, enhancing the stability and carrying capacity of the conveyor belt.
Maintenance and care of high angle cleated conveyor belt:
In order to ensure the normal operation and extend the service life of high angle cleated belt, regular maintenance is required:
1. Regularly clean the residual materials and debris on the high angle cleated belt to avoid damage to the conveyor belt.
2. Regularly check the wear of the high angle cleated belt and replace the severely worn parts in time.
3. According to the use of the high angle cleated belt, adjust its tightness in time to ensure the stable operation of the conveyor belt.
4. Regularly lubricate the transmission parts of the high angle cleated belt, such as bearings, chains, etc., to reduce wear and friction.
